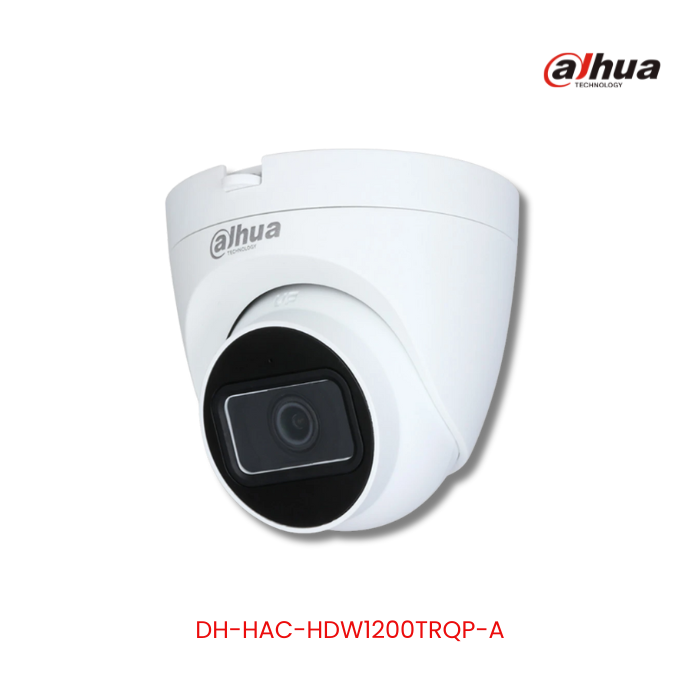

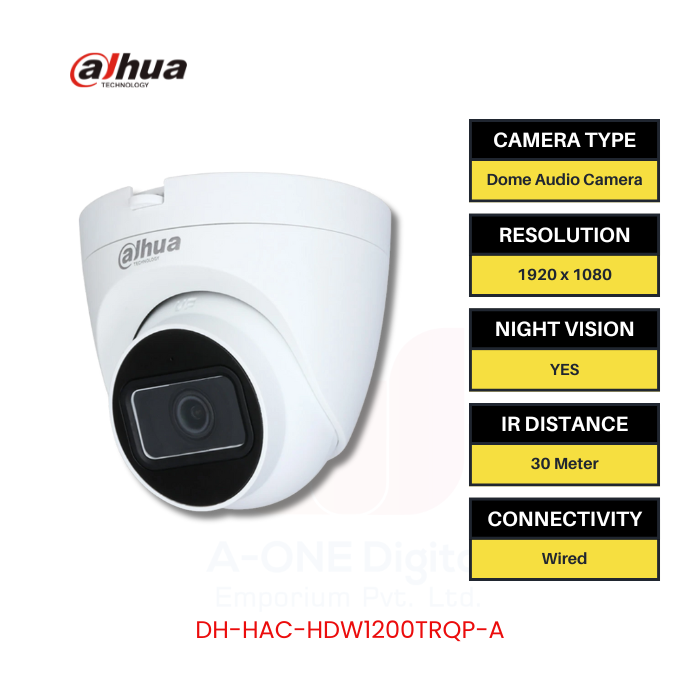

The Dahua DH-HAC-HDW1200TRQP-A is a 2MP HDCVI IR Eyeball Camera that features 1080P resolution video, a built-in microphone, and Smart IR Night Vision. The camera is designed for quick installation and offers switchable output formats for compatibility with various DVRs.
Core Specifications & Features
- High-Definition Video: The camera uses a 1/2.7-inch 2MP CMOS image sensor to capture a maximum resolution of 1920x1080P (1080P Full HD) at up to 30 frames per second.
- Audio Capability: It features a built-in microphone for integrated audio monitoring and recording.
- Night Vision: The device includes Smart IR illumination, which adjusts the intensity of its infrared LEDs to prevent overexposure of objects as they get closer to the camera. The maximum IR length is up to 30 meters (98.43 feet).
- Multi-format Support: The camera supports multiple video formats including HDCVI, CVBS, AHD, and TVI, which are switchable via an OSD menu or a UTC controller (PFM820). This makes it compatible with most existing HD/SD DVRs.
- Lens Options: It comes with a fixed-focal lens, with options for either 2.8mm or 3.6mm focal lengths.
- Image Enhancements: Features include Digital Wide Dynamic Range (DWDR), Backlight Compensation (BLC), Highlight Compensation (HLC), and 2D Noise Reduction (2D NR).
- Durability and Protection: The camera is designed with a plastic casing and is rated IP50 (not suitable for outdoor use). It has a working temperature range of -40°C to +50°C (-40°F to 122°F) and a ±30% input voltage tolerance for unstable power conditions.
- OSD Menu: An On-Screen Display (OSD) menu provides various image adjustments and function settings, supporting multiple languages.
